Final - Pipe Bird
Finally! Final assignment for 3D! This assignment is way more interesting than the previous one as I think that it require creativity to make it different as we need to make a bird sculpture using a PVC PIPE! It's a group assignment which I'm in a group with Aaron, Yoon and Joshua. This assignment require a lot of cutting and using of carpentry apparatus.
REQUIREMENT
6 Feet tall
6 Inches Diameter
80% of the pipe must be utilise
20% of the pipe need to be removed
It must be able to stand still
No additional of material is allowed
Large Birds
PERSONAL RESEARCH
Before deciding which birds each group is doing, we need to do research personally.
I did my personal research on Cassowary, Flamingo and also Penguins.
and here is my research
IMG_1260 3 IMG_1255 3 IMG_1262 IMG_1247 IMG_1263 IMG_1264
I also did sketches for each perspective for each research.
FINALISE GROUP DECISION RESEARCH
We had decided to used snowy owl as our bird sculpture.
PROTOTYPE
20-5-18-2305 20-5-18-2306 20-5-18-2306 20-5-18-2306 20-5-18-2307 IMG_1277 3 IMG_1279 3 IMG_1281 3 IMG_1280 3 IMG_1282 3 IMG_1284 3 IMG_1290 3 IMG_1293 3 IMG_1297 3 IMG_1299 IMG_1302 IMG_1303 IMG_1703 IMG_1708 IMG_1709
In order to have a better image, we make some prototype based on 1:5 scale.
SKETCHES
20-5-18-1844
This is my personal idea sketches, it's not the group finalised sketch.
FINALISED DESIGN x MEASUREMENT
MATERIALS x APPARATUS
IMG_3719 IMG_3697 IMG_3694 IMG_3693 IMG_3687 IMG_3689 IMG_2933 IMG_2853 IMG_2914
PROCESS
MARKING
IMG_2854 IMG_2866 IMG_2860 IMG_2907
We first draw the design on the mahjong paper then only we trace it onto the pipe for future cutting.
DRILLS x CUT
IMG_2905 IMG_2918 IMG_2920 IMG_2929 IMG_3765 IMG_3766 IMG_3763 IMG_3654 IMG_3652 IMG_3655 IMG_3656 IMG_3658
We use drill to make a hole on the pipe to allow the jigsaw to enter and cut the pipe.
HEAT x FORM SHAPE x COOL DOWN
IMG_3686 IMG_3674 IMG_3673 IMG_3682 IMG_3705 IMG_3679 IMG_3708

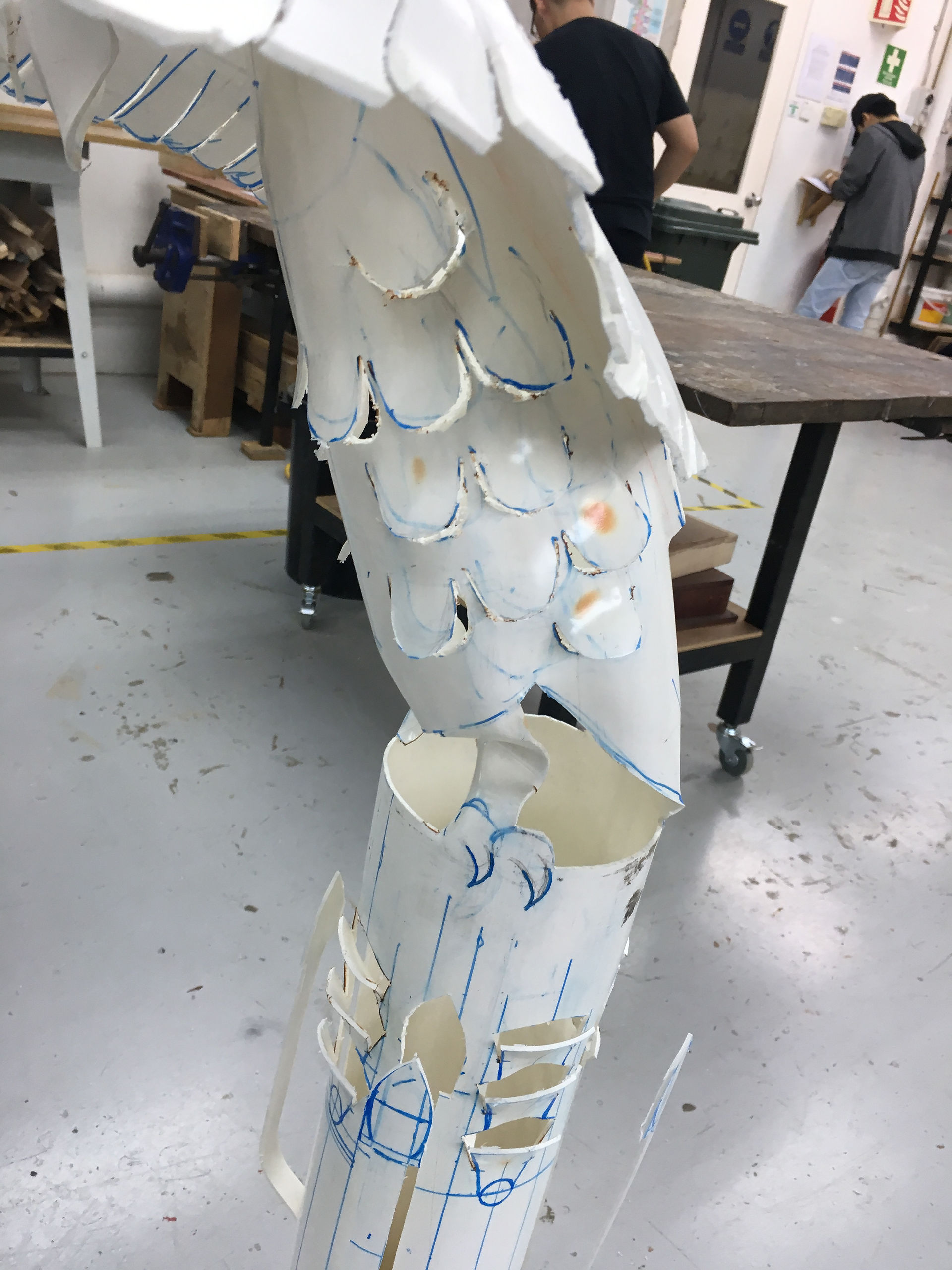

We first heat the pipe to make it easy to bend and then we form the shape by bending with glove to avoid getting burn, after we form the shape we want, we cool the pipe down and fixed the shape.
MILLS
IMG_2933 IMG_3691 IMG_3692
We mill away all the dust and sharp incision to give better surface and avoid from getting cut.
BEFORE APPLYING COLOUR
IMG_3745
APPLYING COLOUR x SPRAY
22-5-18-0305 22-5-18-0306 22-5-18-0306 22-5-18-0306 22-5-18-0306 22-5-18-0306 22-5-18-0306 22-5-18-0306
FINAL OUTCOME
22-5-18-0307 22-5-18-0307 22-5-18-0307
THE EGYPT-STYLE OWL
THOUGHTS
As I'm the only girl in the group, guys do a lot of works in carpentry as they have more energy and better skills to handle the tools but I still manage to contribute such as helping to mill,hold the pipe for easy cutting, help to form shape and chill down the pipe after forming shape and painting too!
And this is my last assignment for 3D module, I really have fun and gain a lot of new experiences from 3D works. Bye bye 3D 💫
THANK YOU MR ERNESTO!
